Bio-Pure 5 Sewage Treatment Plant 14-22 Person

A robust, low maintenance system with a typical emptying period of 3-5 years due to the batch return process

Bio-Pure Neck Extension Group

We strongly recommend you check your invert levels before you place your order

  • Add a Neck Extension *

SKU: Bio-Pure 5 Categories: ,


The Bio-Pure 5 Treatment Plant gives a very discreet solution to on-site sewage treatment as the small lid is flush with the ground and unlike its rivals, the compressor housing is under the lid, with no visually intrusive kiosk.  It is one of the most affordable, high quality products on the market and has one of the lowest running costs of any sewage treatment plant.

Why choose Bio-Pure Sewage Treatment Plant?

  • Affordable sewage treatment plant with low running costs
  • Can be adapted to meet individual needs
  • Visually unobtrusive lid with quiet air pump housed underneath
  • The tank is odourless as solids are treated
  • Typical 3-5 years emptying periods
  • No requirement for concrete means easy installation and low costs
  • No moving parts so that the unit will not fail
  • Gravity outlet
  • Air pump located under the access lid for easy maintenance
  • Fitted scum board at the top of the clarifier
  • Extended aeration method
  • Outer chamber (clarifier) & inner chamber (aeration chamber)
  • Draft tube is 100mm from the base of the clarifier


25 years warranty on high quality GRP conical tank

2 years warranty on the air pump

Options available:

Internal pumped outlet – single pump integral to the tank

Twin external pumped outlet –  Dependent on usage, tanks with a failed pump could go septic and potentially start backing up with hours.  Having twin pumps offers redundancy should one pump fail. Includes a pump chamber to house the pumps within a pedestrian cover (110mm inlet/50mm outlet).

Neck Extension – available in 100-500mm depths

(Bio-Pure 5 standard invert level is 700mm)

Please note that by adding an option, your order becomes a bespoke order and cancellations may not be possible – please contact us for some friendly advice if you have questions.

Offloading is the responsibility of the customer

Delivery lead times can vary, please contact us before ordering if you require the tank urgently.

Additional information

Capacity - Litres


Approx. Tank Weight (empty) - kg


Number of people


Power Consumption


Maximum BOD/Day g


Outside diameter mm


Outlet valve mm


Height to Inlet mm


Depth mm


Maximum average daily flow litres


You may also like…

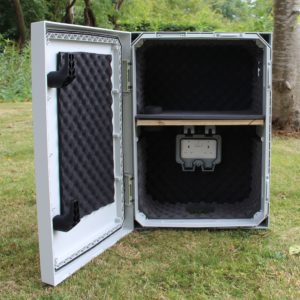

  • Cabinet front view
