Graf One2Clean Sewage Treatment Plant 14 Person

A 14 person sewage treatment plant suitable for a larger property

Clear
Graf Medium Plastic Cabinet

SKU: G50008 Categories: ,

Description

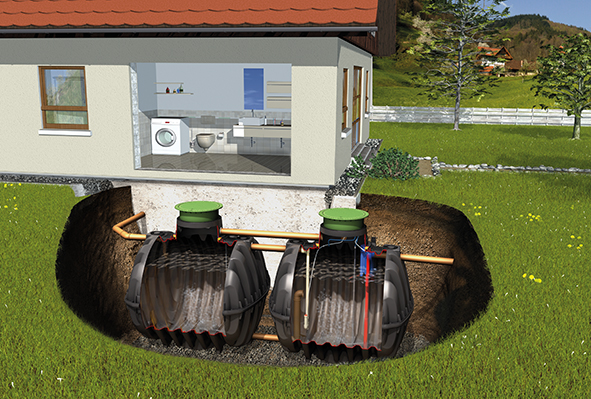

This 14 person One2Clean sewage treatment plant from Graf boasts two robust injection moulded tanks which through a process of aeration and sedimentation treat the wastewater so that it can be discharged into a stream or watercourse.

It is a reliable and eco-friendly solution to dispose of your wastewater as it dispenses with the unnecessary extras, making it a cost-effective solution.

Key benefits:

  • Less energy consumption and less wear
  • No mechanical elements in the waste water
  • No pumps in the waste water
  • No electrical components in the waste water
  • Incredibly little sewage sludge

This kit price includes as standard:

  • Two 4,800l tanks
  • Two mini tank domes and mini telescopic dome shafts suitable for pedestrian loading*
  • Baffles
  • A control unit for indoor installation
  • Technical set up kit
  • 20m hose

*Optional extra:  2 x vehicle loading up to 3.5t cast iron covers, maxi domes and telescopic dome shafts

Warranties:

2 years warranty on technology (compressor and parts)

10 years warranty on the tank

Options available:

External pumped outlet in a separate chamber

Heavy Duty cover – vehicle loading up to 3.5t with a maxi tank dome, cast iron telescopic dome shaft

Neck Extension – working height 305mm (total height 400mm)

Offloading is the responsibility of the customer

People (Max.) Volume (litres) Length (mm) Width (mm) Height total (mm) Weight (kg)
Standard Cover 14 2 x 4,800 2 x 2,280 1,985 2,250-2,450 440
Heavy Duty Cover 14 2 x 4,800 2 x 2,280 1,985 2,570-2,770 480
